Bluetooth® Low Energy (BLE)
The Data Logger Wireless has support for Bluetooth®1 (BLE 4.2) which allows it to passively read data broadcast by nearby sensors. Connected GATT services can be supported on request.
Device support can easily be incorporated on request, contact us to discuss your requirements.
Supported Devices
The Data Logger Wireless decodes Ruuvi® data formats 3, 5, 6 and E1 from manufacturer-specific BLE advertisements, and tracks up to 8 sensors. See Data Logger Wireless for scan and reporting behaviour.
For BLE broadcast devices like the Ruuvi® devices and BLE tags, there's no pairing or configuration necessary, a nearby Data Logger Wireless device will continuously scan for nearby devices and collect & report their data acting as a gateway.
Ruuvi® Air
The Ruuvi®2 Air is a compact & accurate air quality and environment sensor and is perfect for monitoring a remote site or equipment placed anywhere in the world.

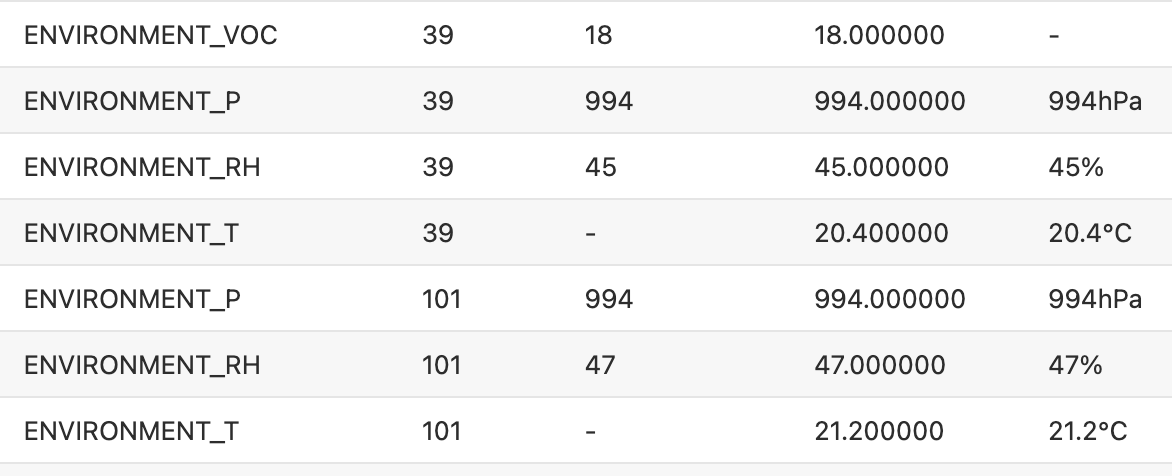

| Value | Description |
|---|---|
| Environment Pressure [hPa] | Atmospheric pressure range 100-1124 hPa |
| Air Humidity [%] | Relative air humidity |
| Air Temperature [°C] | Air temperature |
| Volatile Organic Compound [VOC index] | Amount of evaporated carbon based matter in air |
| CO2 [PPM] | Concentration of CO2 in air |
Additional data fields E1, 6 are available and can be supported upon request.
RuuviTag
RuuviTag is an affordable temperature and physical conditions sensor, the data supported by the Data Logger Wireless is:
| Value | Description |
|---|---|
| Environment Pressure [hPa] | Atmospheric pressure range 100-1124 hPa |
| Air Humidity [%] | Relative air humidity |
| Air Temperature [°C] | Air temperature |
Additional data fields 5 are available and can be supported upon request.
Gobius® tank sensors
Gobius C tank sensors are recognised from their BLE advertisements. Distance, temperature and sensor state are shown on the WiFi status page, and the raw advertisement is sent over Iridium for processing in the cloud.
